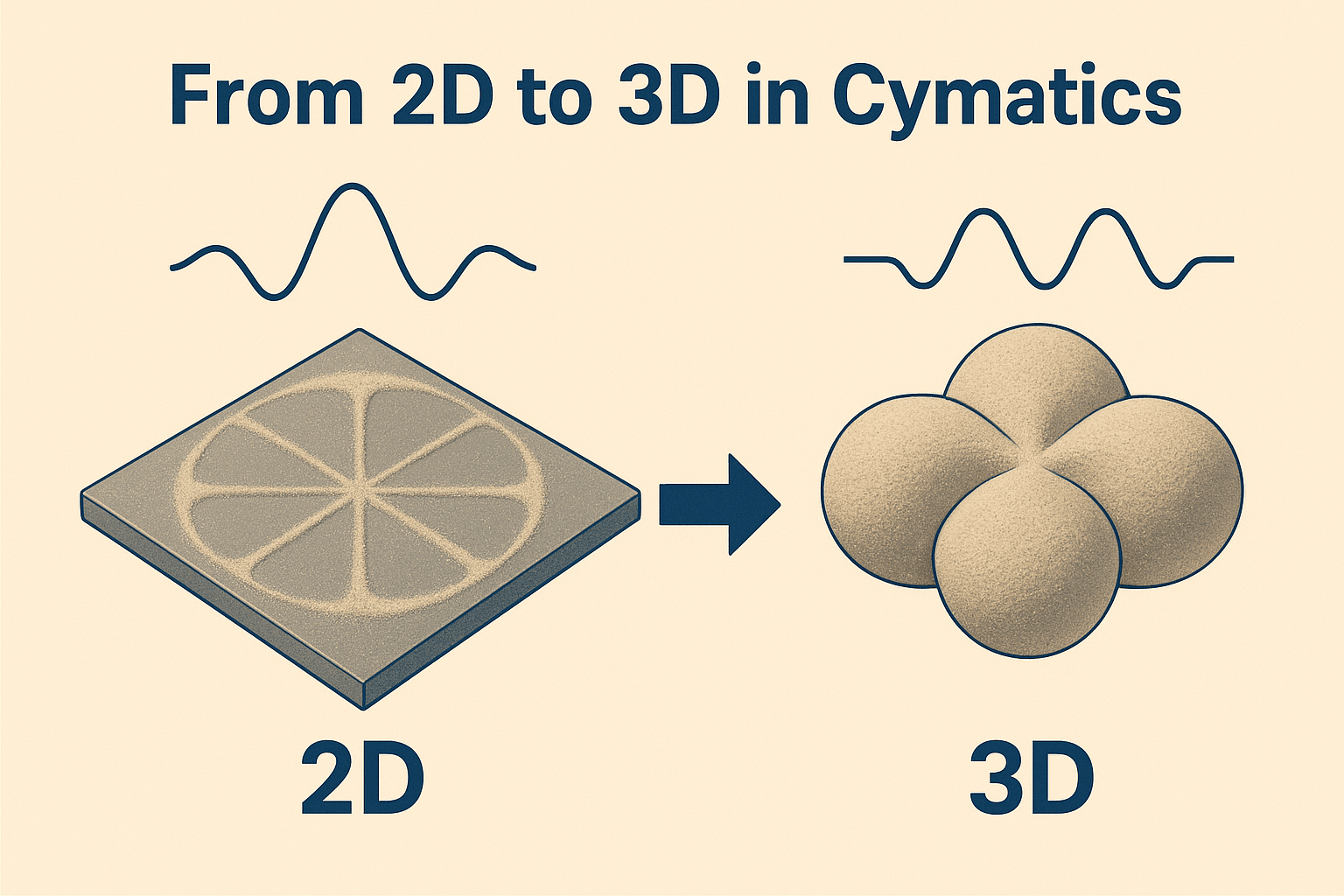

Cymatics — the science and art of making sound visible — has fascinated humans for centuries. From Chladni plates showing sand dancing into symmetrical shapes, to modern acoustic levitation where particles float in mid-air, cymatics bridges physics, music, and art.

But what happens when we go beyond 2D plates into 3D space? Could sound waves in microgravity build entire lattices and sculptures floating in mid-air? Let’s explore this journey — from flat surfaces to the next frontier: 3D cymatics experiments in zero gravity.

Cymatics: From 2D Sand Patterns to 3D Sound Sculptures

The Origins: 2D Cymatics

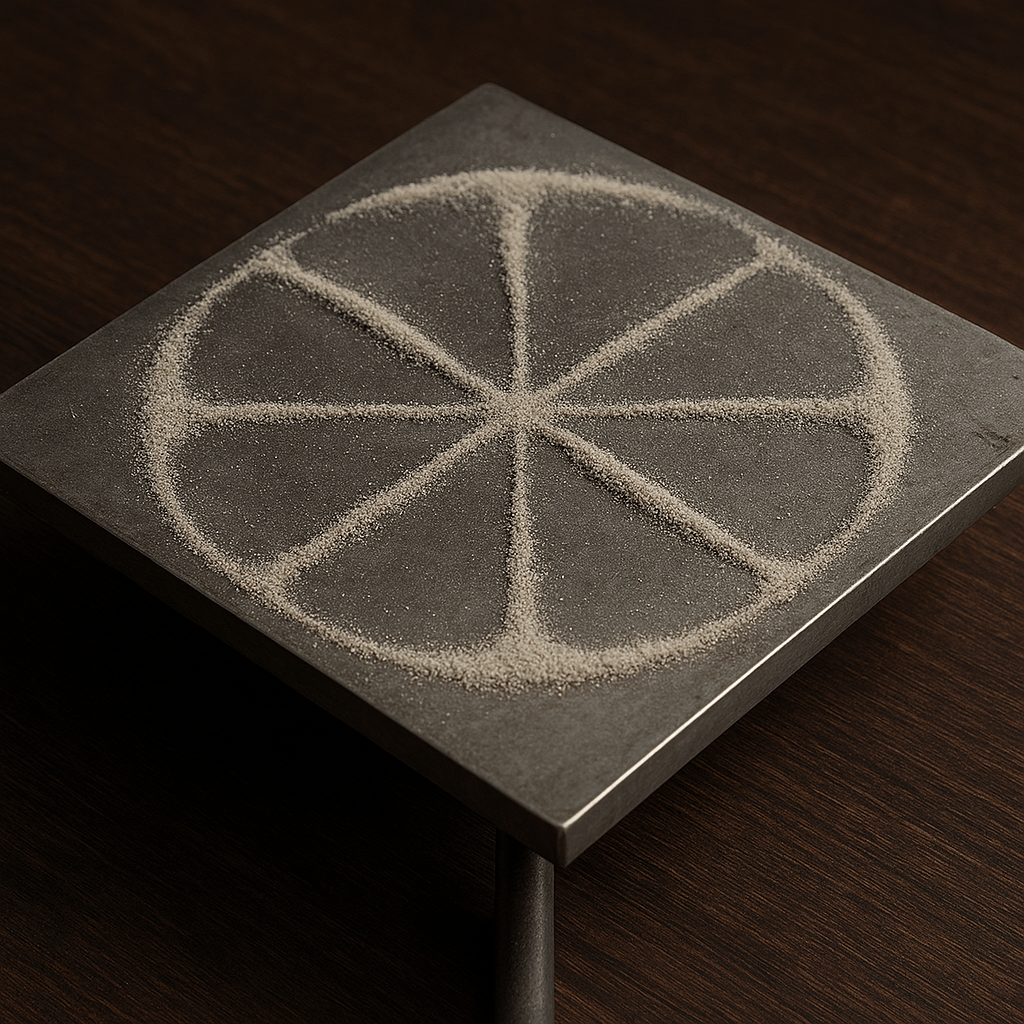

  • Chladni plates (18th century) used vibration to create sand patterns on metal sheets.

  • The nodes and antinodes of sound waves determined where sand would settle, forming stunning symmetrical figures.

  • These patterns showed the world that sound has structure, order, and geometry.

Modern Cymatics: Beyond the Plate

  • Water cymatics: using frequencies to generate ripples, mandalas, and fractals.

  • Acoustic levitation: ultrasonic waves suspending small particles or droplets in air.

  • 3D standing waves in labs already hint at the possibility of true volumetric sound structures.

Why 3D Cymatics Matters

In 2D, patterns are constrained to a flat surface. But in 3D, the entire space becomes a canvas. Imagine:

  • Particles forming floating lattices like molecular crystals.

  • Living architecture of sound, with shapes changing as frequencies shift.

  • Applications in art, science, and even manufacturing (e.g., using sound to position nanoparticles).

The Next Frontier: Cymatics in Microgravity

Here’s where things get exciting. On Earth, gravity pulls particles down, limiting cymatic experiments. But in zero gravity, sound can freely organize matter in all three dimensions.

Researchers propose creating a sealed chamber in space with:

  • Ultrasonic transducers arranged on all sides.

  • Particles like microspheres or droplets seeded inside.

  • Controlled frequencies to form 3D standing wave structures.

This would allow us to capture true volumetric sound-driven lattices, something never seen before.

Our Proposed Experiment: Building 3D Sound Sculptures in Space

Imagine filling a chamber with floating particles in microgravity, then driving them with precise acoustic frequencies.

  • At low frequencies → large, shell-like layers.

  • At high ultrasonic frequencies → fine, crystal-like lattices.

  • By adjusting phase → patterns could rotate, morph, or even “breathe.”

These structures could be reconstructed in 3D with lasers and cameras, creating the first ever volumetric cymatic maps.

Why This Matters Beyond Art

3D cymatics is not just beautiful — it has potential applications in:

  • Material science: arranging nanoparticles without physical contact.

  • Medicine: sound-based drug delivery structures.

  • Art & design: immersive installations where sound literally sculpts matter.

  • Education: making invisible sound waves tangible in classrooms.

Cymatics: From 2D Sand Patterns to 3D Sound Sculptures

The Experiment

Experiment Cymatics: From 2D Sand Patterns to 3D Sound Sculptures

1) Mission goal

Create and map free-floating 3D cymatic patterns in microgravity by driving acoustic fields (and optional EM fields) inside a sealed chamber, then reconstruct the shapes in 3D.

2) Core idea (how patterns form)

In microgravity, particles are not pinned to a plate. A 3D standing wave (spherical/cubic modes) will form pressure nodes/antinodes throughout the volume. Particles migrate toward nodes (or antinodes, depending on size/contrast), yielding volumetric lattices, shells, and bubble-like structures.

3) Hardware: “Cymatics Volume Chamber” (CVC)

  • Chamber: 40–80 cm edge, clear polycarbonate or borosilicate cube; rounded edges to reduce mode distortion; internal acoustic damping on frame.

  • Acoustic system

    • 6–12 wide-band ultrasonic transducers (30–80 kHz) on each face, phase-controllable (±180°), plus 4–8 audible-range drivers (200–2,000 Hz) to excite larger features.

    • FPGA/DSP for phase steering and mode sweeps; amplitude 130–160 dB SPL max inside chamber (vacuum-rated mounts if needed).

  • EM / optional variants

    • Magnetic: Helmholtz coils on three axes for static gradients (≤100 mT) to bias magnetizable particles.

    • Electrostatic: Guarded electrodes on faces (up to a few kV, microamp regime) for charged microparticles (e.g., polystyrene beads).

  • Particle options (choose one per run)

    1. Hollow glass microspheres (20–200 µm) – high acoustic response, optically visible.

    2. Polystyrene beads (10–100 µm), optionally charged.

    3. Nickel-coated polymer beads (50–150 µm) for magnetic bias trials.

    4. Smoke / oil microdroplets for fluid-phase visuals (if pressure-controlled).

  • Environment control

    • Air at 0.2–1.0 atm, or argon for scattering contrast; temperature 20–25 °C.

    • Fanless; gentle recirc pump at corners for reset only.

  • Imaging & metrology

    • 4–6 synchronized global-shutter cameras (12–24 MP) at corners + centers of faces.

    • Dual-axis laser light sheets (532 nm + 450 nm), scanned to slice the volume.

    • Optional Schlieren pair for density gradients.

    • IMU for platform micro-g jitter logging.

4) Control & frequency plan

  • Mode map (pre-flight): simulate cavity eigenmodes for the exact geometry.

  • Sweep protocol:

    • Audible sweep 200–2,000 Hz (2–5 Hz/s) → coarse 3D shells.

    • Ultrasonic sweep 30–80 kHz (100–500 Hz steps) → fine lattices.

    • Multi-tone lock: hold 2–3 frequencies at chosen phases (e.g., 520 Hz + 41.2 kHz + 52.0 kHz) to create quasi-crystal volumetrics.

  • Phase steering: rotate relative phases to “twist” patterns and test stability/branching.

5) 3D reconstruction pipeline

  1. Calibrate cameras with checkerboard before seeding.

  2. Run structured-light scans (laser sheets) while recording multi-view video.

  3. Use PIV/particle tracking or multi-view stereo to triangulate particles.

  4. Reconstruct as voxel grid / point cloud (PLY/OBJ), then fit to nodal surfaces of predicted modes.

  5. Metrics: node spacing, symmetry group, defect density, settling time, robustness to phase perturbations.

6) Experimental sequence (ISS or parabolic flight)

  1. Prime: evacuate/flush to target gas, set pressure.

  2. Seed: release known mass/size-distribution of particles (hopper with gate).

  3. Stabilize: low-amplitude sweep to distribute; then ramp to target SPL.

  4. Hold & record: 60–180 s per mode; rotate phases; log behavior.

  5. Reset: silence + corner recirc for 20–40 s; repeat with new settings.

  6. Variants: repeat with magnetic bias or charged beads.

7) What we expect to see

  • Spherical shells / onion layers at fundamental modes.

  • Body-centered & face-centered lattices at higher harmonics.

  • Beating morphologies with dual-tone drive (breathing lattices).

  • Field-biased asymmetry when EM gradients are on.

  • Phase-rotation “conveyor” that gently advects the lattice (tests controllability).

8) Risks & mitigations

  • Adhesion to walls: anti-static wall coating + ionizer pulse between runs.

  • Thermal drift: duty-cycle transducers; temp logging.

  • Micro-g jitter: schedule during quiet windows; use IMU for post-correction.

  • Particle clumping: narrow size distribution; humidity control.

9) Ground test path (before space)

  • Build a 1-D/2-D acoustic levitator array (ultrasonic phased array) to demo free-space nodes.

  • Use drop tower / parabolic flights for 20–30 s micro-g bursts to validate 3D seeding and imaging.

  • Validate reconstruction pipeline with fog + laser sheets.

10) Data products & outreach

  • Public 3D models (GLB/OBJ) of cymatic lattices you can spin in a browser.

  • Slow-mo volumetric videos with overlaid node surfaces.

  • “Sound-printed matter” gallery for art/science exhibits.

11) Team & budget sketch (order-of-magnitude)

  • Hardware (transducers, drivers, chamber, optics): $60–120k.

  • Control & vision stack (FPGA/DSP, sync cams, lasers): $80–150k.

  • Micro-g access (parabolic/ISS payload dev): $250k+ depending on route.

  • Timeline: 6–9 months to ground demo; 12–18 months to flight-ready.

Two quick variants

  • Fluid cymatics: replace beads with neutrally buoyant microbubbles in a sealed liquid cell; drive with ultrasound → sharp 3D bubble lattices.

  • Dusty-plasma mode (advanced): micron dust in low-pressure argon with RF plasma → self-organizing Coulomb crystals (adds plasma physics dimension).



Conclusion: The Future is 3D

Cymatics has evolved from flat sand patterns to dynamic liquid mandalas, and soon to 3D sound structures in microgravity. This journey proves one thing: sound is not just heard — it can be seen, shaped, and even built with.

As we prepare for future space-based experiments, one truth resonates louder than ever: sound is a universal architect.

FAQs

Q: What is the difference between 2D and 3D cymatics?
2D cymatics uses flat surfaces where particles settle into visible patterns. 3D cymatics explores volumetric space, allowing matter to form floating, crystal-like structures driven by sound waves.

Q: Can cymatics really be used in zero gravity?
Yes. In microgravity, particles are not pulled down, allowing sound waves to organize them freely in three dimensions. This makes space the ideal lab for 3D cymatics.

Q: What are the applications of 3D cymatics?
Potential uses include nanotechnology, acoustic levitation for manufacturing, immersive art installations, and even futuristic architecture shaped by sound.

Q: Who first studied cymatics?
Ernst Chladni in the 18th century pioneered cymatics with vibrating plates, showing how sound makes matter move into patterns.
